340/350 SEMI-FRAMELESS BYPASS SLIDING SHOWER DOORS
- 5mm glass
- Tempered with polished edges
- Standard one towel bar and one pull
- Heaviest gauge aluminum extrusions in the industry
- Easy clean track
- Safety T-lock header
- Heavy duty nylon rollers
- Standard and custom configurations
- New easy to install, mechanically fastened hanger brackets
- Can be used in fibreglass stalls
| downloads |
|---|
 340 350 installation |
340 (for tub)
5mm clear glass (CLR)
| Model | Size | Opening |
|---|---|---|
| 340 56 57 | 56¾” x 57″ | 52¾” to 56¾” |
| 340 58 57 | 58¾” x 57″ | 54¾” to 58¾” |
| 340 60 57 | 60¾” x 57″ | 56¾” to 60¾” |
| 340 60 65 | 60¾” x 65″ | 56¾” to 60¾” |

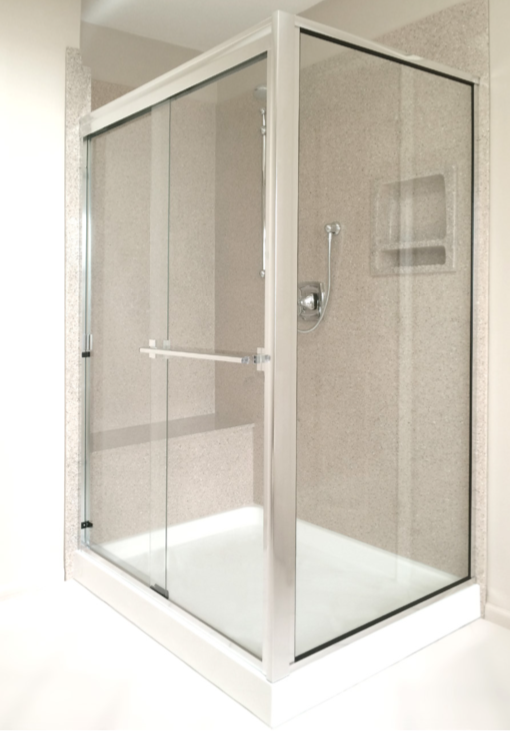

350 (for shower)
5mm clear glass (CLR)
| Model | Size | Opening |
|---|---|---|
| 350 43 70 | 42½” x 70″ | 41″ to 43″ |
| 350 48 70 | 48¾” x 70″ | 44¾” to 48⅜” |
| 350 54 70 | 54¾” x 70″ | 50¾” to 54¾” |
| 350 56 70 | 56¾” x 70″ | 52¾” to 56¾” |
| 350 58 70 | 58¾ x 70 | 54¾” to 58¾” |
| 350 60 70 | 60¾” x 70″ | 56¾” to 60¾” |
| 350 48 76 | 48¾” x 76″ | 44¾” to 48⅜” |
| 350 56 76 | 56¾” x 76″ | 52¾” to 56¾” |
| 350 58 76 | 58¾” x 76″ | 54¾” to 58¾” |
| 350 60 76 | 60¾” x 76″ | 56¾” to 60¾” |
| Return panel | clear glass up to 36″ wide | |
| Inline panel | clear glass up to 36″ wide | |
| 350 CUST | 60-72″ wide x 70″ max high | |
| 350 CUST | 60-66″ wide x 76″ max high |
* Exact opening centreline dimensions required when ordering
